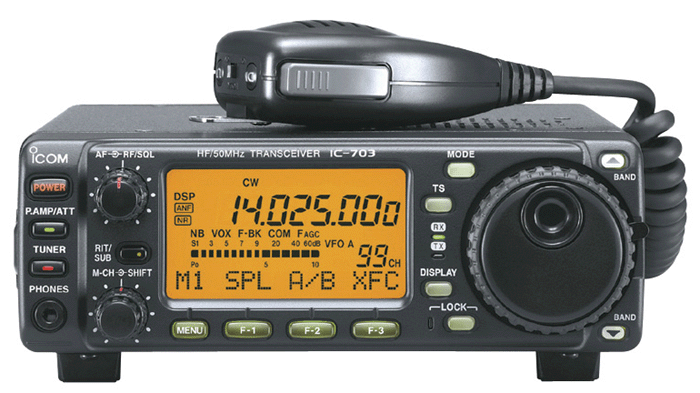

GENERAL |
|
Frequency Range |
| TX |
1.80~1.99
3.50~3.99
7.00~7.30
10.10~10.15
14.00~14.35
18.068~18.168
21.00~21.45
24.89~24.99
28.00~29.70 |
Same as Working Range |
| RX |
0.03~29.99 MHz
|
0.50~29.99 MHz |
|
| Mode |
:
USB/LSB/CW/RTTY/AM/FM |
| Temperature
range |
:
-10°C to +60°C; +14°F to +140°F |
| Antenna
Impedance |
:
50 ohms(SO-239) |
| Frequency
stability |
:
Less than ±0.5 ppm (0 to 50°C; +32 to +122°F) |
| No. of Memory Ch. |
:
105(99 split, 6 scan edges) |
| Frequency
stability |
:
Less than ±0.5 ppm (1 min. after powered ON/0 to
50°C; +32 to +122°F) |
| Power supply
voltage |
: 9.0 to 15.87
V DC (negative ground) |
|
Current Drain |
: Tx
Rx |
10 W
5 W
Standby
Max. audio |
3.0
A
2.0 A(9.6V)
0.25 A (typ.)
0.45 A (typ.) |
|
Dimensions
(projections not included) |
: 167(W) ×
58(H) × 200(D) mm;
6 9/16(W) × 2 9/32(H) × 4 7/8(D) in |
| Weight
(approx.) |
: 2.0 kg; 4
13/32 lb |
|
|
TRANSMITTER |
|
Mode |
USB/LSB/CW/RTTY/AM/FM
|
|
Modulation system |
: USB/LSB
Blanced Modulation
AM Low Level Modulation
FM Variable Reactance Frequency
Modulation |
| Spurious
emission |
: 50 dB (HF
bands) |
| Carrier
suppression |
: More than 40
dB |
Unwanted
sideband
suppression |
: More than 50 dB |
|
Spurious Emissions |
: Below 30
MHz: Less than -50 dB
Above 50 MHz: Less than -60 dB |
| Microphone
Connector |
: 8-pin
modular jack (600 ohms) |
|
Output Power |
:USB/LSB/CW/FM/RTTY
0.1 to 10 W (at 13.8V)
AM 0.1 to 4 W
(at 13.8 V)
USB/LSB/CW/FM/RTTY
0.1 to 5 W (at 9.6V)
AM 0.1 to 2 W
(at 9.6 V) |
|
|
RECEIVER |
| Receive system |
: Double
conversion Superheterodyne system |
|
Intermediate frequencies |
: 1st 64.455
MHz (for all modes)
2nd 455 kHz (for all modes) |
|
Sensitivity (typical) |
|
:
|
Frequency Range
(MHz) |
SSB, CW, RTTY
(at 2.4 kHz BW) |
AM
(at 6 kHz BW) |
FM
(at 15 kHz BW) |
|
0.50 - 1.799 |
__ |
13µV*1 |
__ |
|
1.80 - 29.99 |
0.16µV *1 |
2µV *1 |
__ |
|
28.0 - 29.7 |
0.16µV *1 |
2µV *1 |
0.5µV *1 |
10 dB S/N
for SSB, CW, RTTY and AM, 12 dB SINAD
for FM
*1 Pre-amp is ON
|
|
Squelch
sensitivity
(Pre-amp: ON) |
: SSB, CW,
RTTY
FM |
Less
than 5.6 µV
Less than 0.32 µV |
|
Selectivity
(typical) |
: SSB/ CW
(BW: 2.4 kHz)
AM /FN-N (BW: 6 kHz)
FM (BW: 15 kHz) |
More
than 2.4 kHz/-6dB
Less than 4.5 kHz/-60 dB
More than 8.0 kHz/-6dB
Less than 30.0 kHz/-60 dB
More than 12.0 kHz/-6 dB
Less than 30.0 kHz/-60 dB |
|
| Spurious
Response |
: More than 70
dB |
| AF output
power |
:
More than 1.0 W with an 8 ohms load |
| RIT variable
range |
: ±9.99 kHz |
