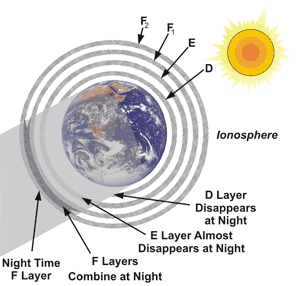

Ionosphere Layers

Two measurements are available from magnetometer data:
____Average daily solar flux SFI index at or above 80 best for propagation
____Average daily planetary A index at or below 10 best for propagation
____Three-hour K index at or below 3 best for propagation

Three conditions are desired for good HF conditions:
_____________1.  Quiet geomagnetic field
_____________2.  High solar flux (SFI index)
_____________3.  High sunspot numbers

Higher geomagnetic numbers indicate higher ionosphere absorption.
